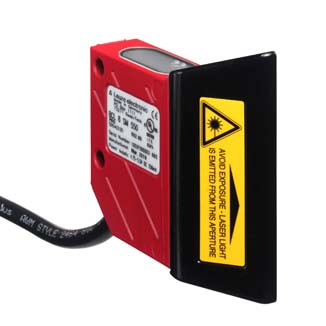

Technical features
- Basic data
- Series: BCL 8
- Functions
- Functions: AutoConfig, Alignment mode, AutoReflAct, I/O, LED indicator, Multiple read / MultiScan, Output format selectable, Reading gate control, Reference code comparison
- Read data
- Code types, readable: 2/5 Interleaved, Codabar, Code 128, Code 39, Code 93, EAN 128, EAN 8/13, EAN Addendum, Pharma Code, UPC
- Scanning rate, typical: 500 scans/s
- Bar codes per reading gate, max. number: 63 Piece(s)
- Optical data
- Reading distance: 35 ... 95 mm
- Light source: Laser, Red
- Laser light wavelength: 650 nm
- Laser class: 2, IEC/EN 60825-1:2007
- Modulus size: 0.12 ... 0.4 mm
- Reading method: Line scanner
- Scanning rate: 500 scans/s
- Beam deflection: Via rotating polygon wheel
- Light beam exit: Lateral with deflecting mirror
- Electrical data
- Performance data
- Supply voltage UB: 4.75 ... 5.5 V, DC
- Current consumption, max.: 250 mA
- Inputs/outputs selectable
- Number of inputs/outputs selectable: 1 Piece(s)
-
- Interface
- Type: RS 232
- RS 232
- Function: Process
- Service interface
- Type: RS 232
- RS 232
- Function: Service
- Connection
- Number of connections: 1 Piece(s)
- Connection 1
- Type of connection: Cable
- Function: Connection to device
- Cable length: 2,000 mm
- Number of conductors: 5 -wire
- Mechanical data
- Design: Cubic
- Dimension (W x H x L): 58 mm x 75 mm x 17.4 mm
- Housing material: Metal, Zinc
- Lens cover material: Glass
- Net weight: 135 g
- Housing color: Red
- Type of fastening: Mounting thread, Dovetail grooves, Through-hole mounting, Via optional mounting device
- Operation and display
- Type of display: LED
- Number of LEDs: 2 Piece(s)
- Environmental data
- Ambient temperature, operation: 0 ... 40 °C
- Ambient temperature, storage: -20 ... 60 °C
- Relative humidity (non-condensing): 0 ... 90 %
- Certifications
- Degree of protection: IP 67
- Protection class: III
- Certifications: c UL US
- Test procedure for EMC in accordance with standard: EN 61000-6-2, -3
- Test procedure for shock in accordance with standard: IEC 60068-2-27, test Ea
- Test procedure for vibration in accordance with standard: IEC 60068-2-6, test Fc
- US patents: US 6,735,007 B, US 6,822,774 B
- Classification
- Customs tariff number: 84719000
- eCl@ss 8.0: 27280102
- eCl@ss 9.0: 27280102
- ETIM 5.0: EC002550
- ETIM 6.0: EC002550
-
-
