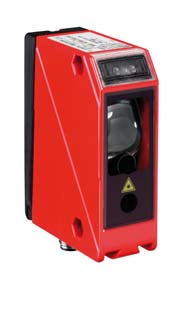

Technical features
- Basic data
- Series: 96
- Operating principle: Diffuse reflection principle with background suppression
- Special design
- Special design: Deactivation input, Small light spot (S)
- Optical data
- Operating range, white 90%: 0.1 ... 6 m
- Operating range limit, white 90%: 0.05 ... 6.5 m
- Light source: Laser, Red
- Laser class: 2, IEC/EN 60825-1:2007
- Electrical data
- Protective circuit: Transient protection, Polarity reversal protection, Short circuit protected
- Performance data
- Supply voltage UB: 18 ... 30 V, DC
- Residual ripple: 0 ... 15 %, From UB
- Open-circuit current: 0 ... 50 mA
- Inputs
- Number of teach inputs: 1 Piece(s)
- Number of deactivation inputs: 1 Piece(s)
- Outputs
- Number of digital switching outputs: 1 Piece(s)
- Switching output 1
- Switching element: Transistor, Push-pull
- Switching principle: Light switching
- Timing
- Switching frequency: 10 Hz
- Response time: 5 ms
- Connection
- Connection 1
- Type of connection: Connector
- Function: Voltage supply, Deactivation input, Signal OUT, Teach input
- Thread size: M12
- Material: Metal
- No. of pins: 5 -pin
-
- Mechanical data
- Dimension (W x H x L): 30 mm x 90 mm x 70 mm
- Housing material: Metal, Zinc
- Lens cover material: Glass
- Net weight: 380 g
- Type of fastening: Via optional mounting device, Dovetail grooves, Through-hole mounting
- Compatibility of materials: ECOLAB
- Operation and display
- Operational controls: Teach button
- Environmental data
- Ambient temperature, operation: -40 ... 50 °C
- Certifications
- Degree of protection: IP 67, IP 69K
- Protection class: II
- Certifications: c UL US
- Standards applied: IEC 60947-5-2
- Classification
- Customs tariff number: 85365019
- eCl@ss 8.0: 27270904
- eCl@ss 9.0: 27270904
- ETIM 5.0: EC002719
- ETIM 6.0: EC002719
-
-
Accessories
-
Downloads
- 3D-CAD models : (1)
Type Designation Language File size Format 3D-CAD model Language-independent 399,4 KB zip - Technical documentation : (5)
Type Designation Language File size Format Data sheet German 1,4 MB pdf Data sheet English 1,4 MB pdf Data sheet French 1,4 MB pdf Data sheet Italian 1,4 MB pdf Data sheet Spanish 1,4 MB pdf - Certificates : (4)
Type Designation Language File size Format Declaration of Conformity German 797,7 KB pdf Declaration of Conformity English 797,7 KB pdf Declaration of Conformity French 797,7 KB pdf Certificate ECOLAB German 620,7 KB pdf
-
Part data of:2019-09-16 18:32:00
