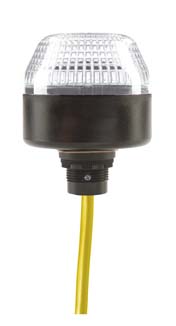

Technical features
- Basic data
- Type of signaling: Optical
- Electrical data
- Life expectancy: > 100,000 h
- Performance data
- Supply voltage UB: 24 V, AC/DC, 10 %
- Current consumption, max.: 43 mA
- Connection
- Connection 1
- Type of connection: Cable
- Cable length: 1,000 mm
- Number of conductors: 4 -wire
-
- Mechanical data
- Design: Cylindrical
- Dimension (? x L): 65 mm x 79 mm
- Length in installed state: 56 mm
- Housing material: Plastic, PC
- Net weight: 117 g
- Housing color: Black
- Type of fastening, at system: In bore holes with ? 22.5 mm
- Type of illuminant: LED/24V
- Lens illumination: Full
- Display of the lens colors: 1 of 3 visible
- Signal image: Continuous light
- Lens color: Red, yellow, green
- Angle of radiation: 360°
- Environmental data
- Ambient temperature, operation: -25 ... 60 °C
- Certifications
- Degree of protection: IP 65
- Certifications: c UL US
- Classification
- Customs tariff number: 85318070
- eCl@ss 8.0: 27371223
- eCl@ss 9.0: 27371223
- ETIM 5.0: EC000272
- ETIM 6.0: EC000272
-
-
Downloads
- Technical documentation : (14)
Type Designation Language File size Format Data sheet Chinese (simplified) 555,2 KB pdf Data sheet Danish 538,6 KB pdf Data sheet German 540,7 KB pdf Data sheet English 536,5 KB pdf Data sheet French 551 KB pdf Data sheet Italian 536 KB pdf Data sheet Korean 529,6 KB pdf Data sheet Dutch 543,8 KB pdf Data sheet Portuguese 546 KB pdf Data sheet Spanish 540,5 KB pdf Data sheet Language-independent 434,6 KB pdf Data sheet Turkish 537,5 KB pdf Product brochure German 1,3 MB pdf Product brochure English 1,3 MB pdf - Certificates : (3)
Type Designation Language File size Format Declaration of Conformity German 70,1 KB pdf Declaration of Conformity English 70,1 KB pdf Declaration of Conformity French 70,1 KB pdf
-
