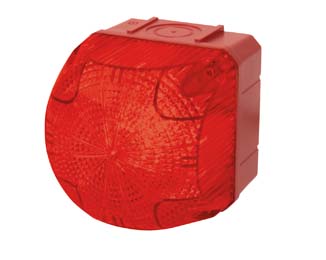

FBA-V3-Q94-R | 50130522

Technical features

• Basic data
  • Series: FBA
  • Type of signaling: Optical
• Optical data
  • Light intensity: 30 cd
• Electrical data
  • Life expectancy: Approx. 50,000 h
  • Performance data
    • Supply voltage U_B: 230 V, AC/DC, 10 %
    • Current consumption, max.: 60 mA
• Connection
  • Connection 1
    • Type of connection: Terminal
• Mechanical data
  • Design: Cubic
  • Dimension (W x H x L): 94 mm x 94 mm x 97 mm
  • Housing material: Plastic, PC
  • Net weight: 230 g
  • Housing color: Red
  • Type of fastening, at system: Screw type
  • Type of illuminant: LED/24V
  • Signal image: Continuous or flashing light
  • Lens color: Red
  • Blink/flash frequency: 1 Hz
  • Angle of radiation: 180°
• Environmental data
  • Ambient temperature, operation: -30 ... 60 °C
• Certifications
  • Degree of protection: IP 66
  • Certifications: c UL US
  • Resistance to shock: IK09 (EN 50295:98)
• Classification
  • Customs tariff number: 85318070
  • eCl@ss 8.0: 27371223
  • eCl@ss 9.0: 27371223
  • ETIM 5.0: EC000272
  • ETIM 6.0: EC000272
