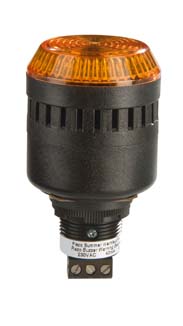

Technical features
- Basic data
- Type of signaling: Optical and acoustic
- Electrical data
- Life expectancy: > 100,000 h
- Performance data
- Supply voltage UB: 24 V, AC/DC, 10 %
- Current consumption, max.: 58 mA
- Connection
- Connection 1
- Type of connection: Terminal
-
- Mechanical data
- Design: Cylindrical
- Dimension (? x L): 45 mm x 83 mm
- Length in installed state: 48 mm
- Housing material: Plastic, PC
- Net weight: 65 g
- Housing color: Black
- Type of fastening, at system: In bore holes with ? 22.5 mm
- Type of illuminant: LED/24V
- Lens illumination: Full
- Signal image: Continuous or flashing light
- Lens color: Orange
- Angle of radiation: 360°
- Environmental data
- Ambient temperature, operation: -25 ... 60 °C
- Certifications
- Degree of protection: IP 65
- Certifications: c UL US
- Acoustic data
- Tone type: Continuous or pulse tone
- Audio frequency: Approx. 3500 Hz
- Sound pressure: 85 ... 98 dB
- Number of tones: 3 Piece(s)
- Classification
- Customs tariff number: 85318070
- eCl@ss 8.0: 27371290
- eCl@ss 9.0: 27371290
- ETIM 5.0: EC000272
- ETIM 6.0: EC000272
-
-
