Technical features

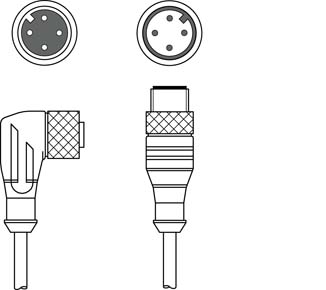

- Connection
- Connection 1
- Type of connection: Connector
- Thread size: M12
- Type: Female
- No. of pins: 5 -pin
- Encoding: A-coded
- Design: Angled
- Connection 2
- Type of connection: Connector
- Thread size: M12
- Type: Male
- No. of pins: 5 -pin
- Encoding: A-coded
- Design: Axial
- Lock: Screw fitting, nickel-plated brass, recommended torque 0.5 Nm, self-locking
- Cable properties
- Sheathing color: Yellow
- Shielded: No
- Silicone-free: Yes
- Cable design: Interconnection cable
- Cable length: 300 mm
- Sheathing material: TPE
- Wire insulation: PVC
- Suitability for drag chains: Yes
-
- Mechanical data
- Width across flats: 14.5 mm
- Bending cycles: 1,000,000 Piece(s)
- Certifications
- Degree of protection: IP 65, IP 67, NEMA 6P
- Classification
- Customs tariff number: 85444290
- eCl@ss 8.0: 27279218
- eCl@ss 9.0: 27060311
- ETIM 5.0: EC001855
- ETIM 6.0: EC001855
-
-
