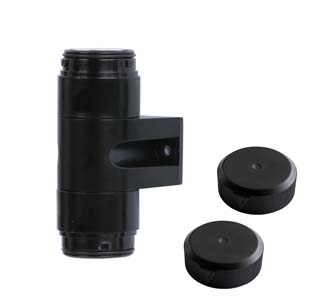

E4-MW2 | 50130457

Technical features

• Basic data
  • Series: E4
• Connection
  • Connection 1
    • Type of connection: Terminal
    • Type of terminal: Push-in technology
• Mechanical data
  • Design: Cylindrical
  • Dimension (? x L): 40 mm x 56 mm
  • Housing material: Plastic, PC
  • Housing color: Black
  • Design of mounting device: Bracket mounting
  • Type of fastening, at system: Screw type / vertical
  • Lens modules: Max. 10 pieces
  • Module holder: Two-sided
  • Number of end caps: 2 Piece(s)
• Environmental data
  • Ambient temperature, operation: -30 ... 60 °C
• Certifications
  • Degree of protection: IP 66
• Classification
  • Customs tariff number: 85318070
  • eCl@ss 8.0: 27371232
  • eCl@ss 9.0: 27371232
  • ETIM 5.0: EC001152
  • ETIM 6.0: EC001152

Accessories

Downloads

• Technical documentation : (15)

  Type	Designation	Language	File size	Format
  Data sheet		Chinese (simplified)	560,3 KB	pdf
  Data sheet		Danish	554,4 KB	pdf
  Data sheet		German	545,4 KB	pdf
  Data sheet		English	543,9 KB	pdf
  Data sheet		French	560,4 KB	pdf
  Data sheet		Italian	545,3 KB	pdf
  Data sheet		Japanese	561,3 KB	pdf
  Data sheet		Korean	540,2 KB	pdf
  Data sheet		Dutch	554,7 KB	pdf
  Data sheet		Portuguese	553,6 KB	pdf
  Data sheet		Spanish	552,3 KB	pdf
  Data sheet		Turkish	550,7 KB	pdf
  Mounting instructions		Language-independent	1,6 MB	pdf
  Product brochure		German	1,3 MB	pdf
  Product brochure		English	1,3 MB	pdf
