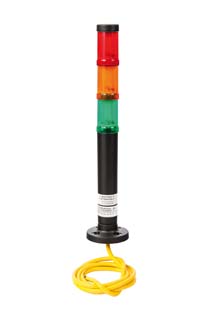

Technical features
- Basic data
- Series: C3
- Type of signaling: Optical
- Electrical data
- Life expectancy: > 100,000 h
- Performance data
- Supply voltage UB: 24 V, AC/DC, 10 %
- Current consumption, max.: 90 mA
- Connection
- Number of connections: 1 Piece(s)
- Connection 1
- Type of connection: Cable
- Function: Voltage supply
- Cable length: 1,000 mm
- Number of conductors: 4 -wire
- Mechanical data
- Design: Cylindrical
- Dimension (? x L): 30 mm x 298 mm
- Housing material: Plastic, PC
- Housing color: Black
- Type of fastening, at system: Screw type / horizontal
- Type of illuminant: LED/24V
- Lens modules: 3 pieces, ready-made
- Signal image: Continuous light
- Angle of radiation: 360°
- Sequence of the modules (ascending): Green, orange, red
- Certifications
- Degree of protection: IP 65
- Certifications: c UL US
- Classification
- Customs tariff number: 85318070
- eCl@ss 8.0: 27371230
- eCl@ss 9.0: 27371230
- ETIM 5.0: EC001042
- ETIM 6.0: EC001042
-
-
Downloads
- 3D-CAD models : (1)
Type Designation Language File size Format 3D-CAD model Language-independent 456,2 KB zip - Technical documentation : (15)
Type Designation Language File size Format Data sheet Chinese (simplified) 524,9 KB pdf Data sheet Danish 516,4 KB pdf Data sheet German 524,6 KB pdf Data sheet English 523 KB pdf Data sheet French 538,7 KB pdf Data sheet Italian 518,4 KB pdf Data sheet Japanese 525,9 KB pdf Data sheet Korean 505,4 KB pdf Data sheet Dutch 519,7 KB pdf Data sheet Portuguese 526,7 KB pdf Data sheet Spanish 524,3 KB pdf Data sheet Turkish 516,2 KB pdf Mounting instructions Language-independent 497,3 KB pdf Product brochure German 1,3 MB pdf Product brochure English 1,3 MB pdf - Certificates : (3)
Type Designation Language File size Format Declaration of Conformity German 70,7 KB pdf Declaration of Conformity English 70,7 KB pdf Declaration of Conformity French 70,7 KB pdf
-
Part data of:2019-09-16 18:32:00
