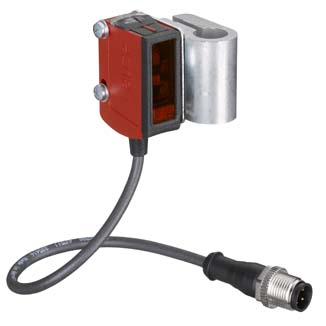

Set PRK25C.D/4P-200-M12+BTU25
Polarized retro-reflective photoelectric sensor set
-
-
Technical features
- Basic data
- Series: 25B
- Operating principle: Reflection principle
- Contains: 1x BTU 025M.25-D12
- Application: Detection of stretch-wrapped objects
- Special design
- Special design: Article set
- Optical data
- Operating range: 0.05 ... 6 m
- Operating range limit: 0.05 ... 8 m
- Light source: LED, Red
- Electrical data
- Protective circuit: Polarity reversal protection, Short circuit protected
- Performance data
- Supply voltage UB: 10 ... 30 V, DC
- Residual ripple: 0 ... 15 %, From UB
- Open-circuit current: 0 ... 20 mA
- Outputs
- Number of digital switching outputs: 2 Piece(s)
- Switching output 1
- Switching element: Transistor, PNP
- Switching principle: Light switching
- Switching output 2
- Switching element: Transistor, PNP
- Switching principle: Dark switching
- Timing
- Switching frequency: 500 Hz
- Response time: 1 ms
- Connection
- Connection 1
- Type of connection: Cable with connector
- Function: Signal OUT, Voltage supply
- Cable length: 200 mm
- Thread size: M12
- Material: Metal
- No. of pins: 4 -pin
-
- Mechanical data
- Dimension (W x H x L): 15 mm x 38.9 mm x 28.7 mm
- Housing material: Plastic, PC-ABS
- Lens cover material: Plastic / PMMA
- Type of fastening: Through-hole mounting
- Environmental data
- Ambient temperature, operation: -30 ... 55 °C
- Certifications
- Degree of protection: IP 66, IP 67
- Protection class: II
- Certifications: c UL US
- Standards applied: IEC 60947-5-2
- Classification
- Customs tariff number: 85365019
- eCl@ss 8.0: 27270902
- eCl@ss 9.0: 27270902
- ETIM 5.0: EC002717
- ETIM 6.0: EC002717
-
-
Set consists of
-
