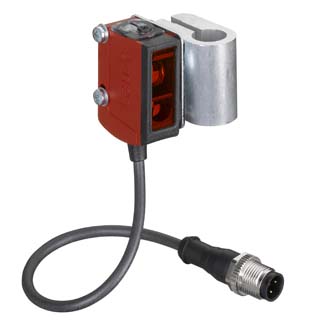

Set HT25C/PX-200-M12+BTU25
Diffuse sensor with background suppression set
-
-
Technical features
- Basic data
- Series: 25B
- Operating principle: Diffuse reflection principle with background suppression
- Contains: 1x BTU 025M.25-D12
- Special design
- Special design: Article set
- Optical data
- Operating range, white 90%: 0 ... 1 m
- Operating range, gray 18%: 0.005 ... 0.7 m
- Operating range, black 6%: 0.005 ... 0.6 m
- Operating range limit: 0 ... 1 m
- Light source: LED, Red
- Electrical data
- Protective circuit: Polarity reversal protection, Short circuit protected
- Performance data
- Supply voltage UB: 10 ... 30 V, DC
- Residual ripple: 0 ... 15 %, From UB
- Open-circuit current: 0 ... 15 mA
- Outputs
- Number of digital switching outputs: 1 Piece(s)
- Switching output 1
- Switching element: Transistor, PNP
- Switching principle: Dark switching
- Timing
- Switching frequency: 250 Hz
- Response time: 2 ms
- Connection
- Connection 1
- Type of connection: Cable with connector
- Function: Signal OUT, Voltage supply
- Cable length: 200 mm
- Thread size: M12
- Material: Metal
- No. of pins: 4 -pin
-
- Mechanical data
- Dimension (W x H x L): 15 mm x 38.9 mm x 28.7 mm
- Housing material: Plastic, PC-ABS
- Lens cover material: Plastic / PMMA
- Type of fastening: Through-hole mounting
- Operation and display
- Operational controls: Multiturn potentiometer
- Environmental data
- Ambient temperature, operation: -30 ... 55 °C
- Certifications
- Degree of protection: IP 67, IP 66
- Protection class: II
- Certifications: c UL US
- Standards applied: IEC 60947-5-2
- Classification
- Customs tariff number: 85365019
- eCl@ss 8.0: 27270904
- eCl@ss 9.0: 27270904
- ETIM 5.0: EC002719
- ETIM 6.0: EC002719
-
-
