Technical features
- Basic data
- Series: 5
- Operating principle: Reflection principle

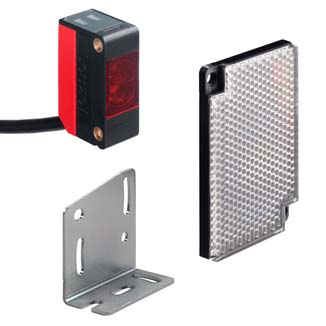

- Contains: 1x BT 205M, 1x TKS 40x60.A, 4x M3 x 8 screw
- Special design
- Special design: Article set
- Optical data
- Operating range: 0.02 ... 2.8 m
- Operating range limit: 0.02 ... 4.2 m, With reflector TK 40x60.A
- Light source: LED, Red
- Electrical data
- Protective circuit: Short circuit protected, Polarity reversal protection
- Performance data
- Supply voltage UB: 10 ... 30 V, DC, Incl. residual ripple
- Residual ripple: 0 ... 15 %, From UB
- Open-circuit current: 0 ... 20 mA
- Outputs
- Number of digital switching outputs: 2 Piece(s)
- Switching output 1
- Switching element: Transistor, PNP
- Switching principle: Light switching
- Switching output 2
- Switching element: Transistor, PNP
- Switching principle: Dark switching
- Timing
- Switching frequency: 500 Hz
- Response time: 1 ms
- Connection
- Connection 1
- Type of connection: Cable
- Function: Voltage supply, Signal OUT
- Cable length: 2,000 mm
- Number of conductors: 4 -wire
-
- Mechanical data
- Dimension (W x H x L): 14 mm x 32.5 mm x 20.2 mm
- Housing material: Plastic, ABS
- Lens cover material: Plastic
- Environmental data
- Ambient temperature, operation: -40 ... 60 °C
- Certifications
- Degree of protection: IP 67
- Protection class: III
- Certifications: c UL US
- Standards applied: IEC 60947-5-2
- Classification
- Customs tariff number: 85365019
- eCl@ss 8.0: 27270902
- eCl@ss 9.0: 27270902
- ETIM 5.0: EC002717
- ETIM 6.0: EC002717
-
-
Set consists of
-
